2002 Honda Civic HX Rear Drum Brake & Wheel Cylinder Replacement

Backing plate and the parking cable

Top view of the brake line connection to the wheel cylinder. Aligning it to the wheel cylinder and tightening it without stripping the fitting may take some time.

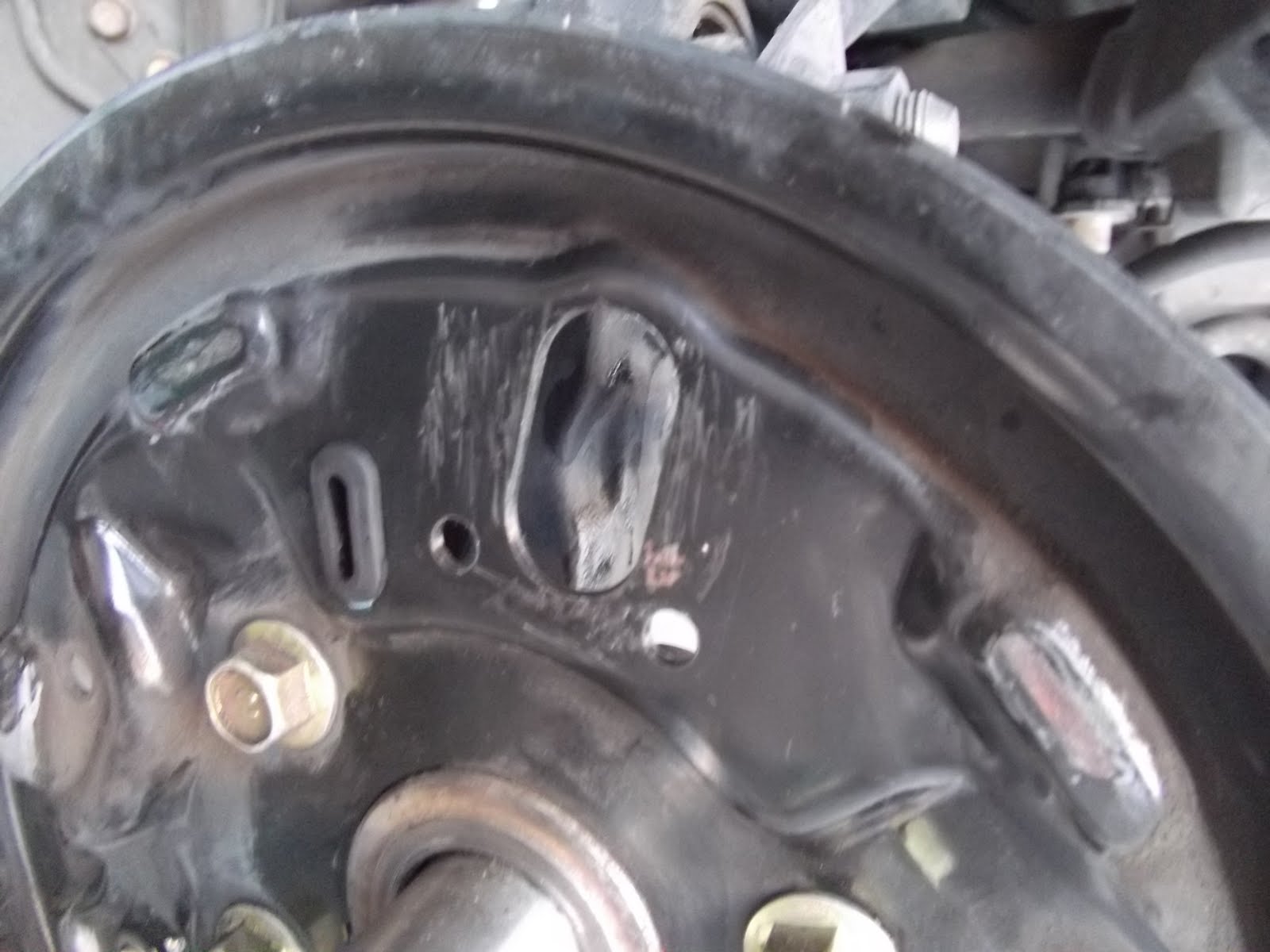

openings on the backing plate for mounting the wheel cylinder and the bolts holding it

Leaky boot seal on the old wheel cylinder. Also adhesive/silicone seal residue on the surface facing the backing plate
